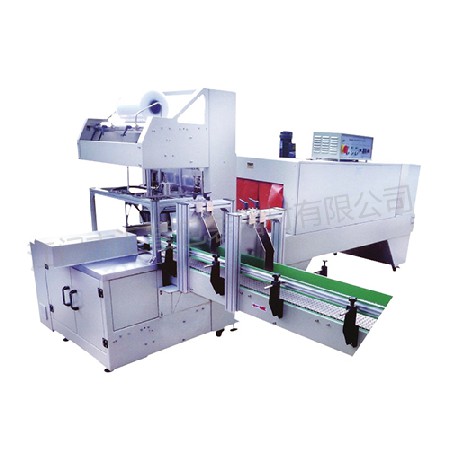

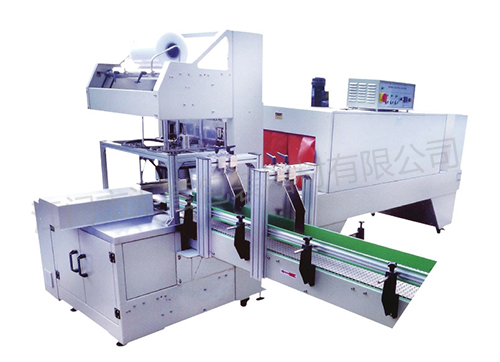

HY 6030AH SF-6040E Fully Automatic Cuff Type (Whole Line Type) Sealing, Cutting, and Shrinking Packaging Machine
2020-12-11 1495
Product Features:
The HY-6030A day HY-6040E fully automatic cuff packaging machine is designed for individual objects or products without pallets. After being connected to the production line, this machine automatically feeds, wraps, seals, shrinks, and cools to shape. It is an automated packaging equipment that does not require manual operation. Can produce 6 bottles (2 x3) 8 bottles (2 x4) 9 bottles (3x3) 12 bottles (3x4) 15 bottles (3x5) 18 bottles (3x6) 20 bottles (4x5), 24 bottles (4x6) and other packaging forms;
HY-6030A introduces technology and process manufacturing, with stable and reliable equipment performance, automatic calculation of daily production and other functions;
☆ Adopting Schneider PLC programmable logic controller and intelligent touch screen matching, realizing the integration of machine, electricity, and gas;
This machine can be packaged in two row, three row, four row and other non reversible heat shrink packaging according to production requirements. When changing the packaging form, only the conversion switch on the conversion panel and the matching material block need to be replaced;
☆ Adopting a deceleration motor, the feeding and film feeding are smooth without shaking. When wrapping the colored film, a color code positioning system needs to be added for accurate positioning;
☆ Adopting specially designed sealing blades, the sealing line is firm, non cracking, and not easy to stick to the blade;
The feeding conveyor belt can be designed to feed on the left or right side according to the needs of the site;
☆ HY-6040 adopts dual operation fans. Make the hot air inside the furnace evenly distributed, resulting in a more aesthetically pleasing effect after shrinkage;
☆ Using solid steel rods wrapped in silicone tubing, the chain rod conveyor is durable and long-lasting. Different conveyor chains can also be used according to different products;
☆ Adopting Schneider frequency converter from France to control the transmission speed and speed regulation;
☆ Super large air flow cooling system, the product quickly cools and solidifies after heat shrinkage. The rear end can be equipped with an aluminum workbench, and the product will not fall to the ground after packaging;
Suitable for sealing, cutting, and shrinking packaging of round products such as beer, mineral water, cans, glass bottles, and plastic bottles without pallets.
-
